£5,709.99

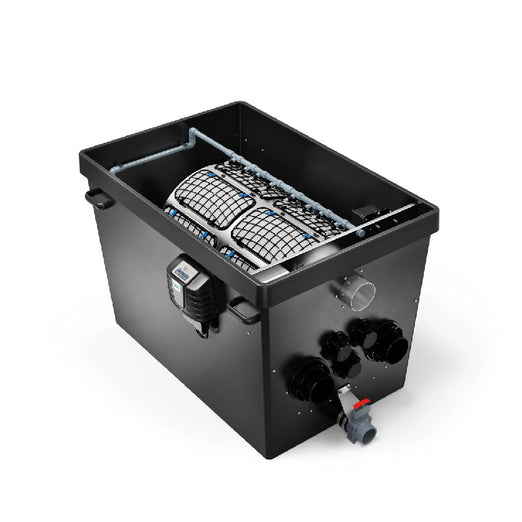

Mature, professional technology with more than three years of development time Modern modular filter system for professional water quality where space is at a minimum TECHNICAL DATA Dimensions (L x...
Availability:
1
In Stock
Categories:
Oase Brand
, OASE Filter
- Mature, professional technology with more than three years of development time
- Modern modular filter system for professional water quality where space is at a minimum
TECHNICAL DATA
| Dimensions (L x W x H) | mm | 1330 x 875 x 820 |
|---|---|---|
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1600 |
| Guarantee (+ request guarantee) * | Years | 2 + 1 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Number of nozzles/rinse quantity | 8 x 2.5 l/min | |
| Scavenging pump | 7 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 16 |
| Filter intake surface | cm² | 6900 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 5 |
| Inlet connections | 3 x 2″ / 2 x DN 110 | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75 | |
| Flush trough connection | DN 110 | |
| Connection to | Bitron Gravity | |
| Min. flow rate | l/h | 1000 |
| Max. flow rate | l/h | 50000 |
| Installation height above water level | cm | 52.0 |
| Type of use | Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
| POS. | PRODUCT | SKU | QUANTITY |
|---|---|---|---|
| 1 | ASM cover drum filter XL | 70995 | 1 |
| 2 | Spare ASM drum motor | 71771 | 1 |
| 3 | Screw V4A DIN 912 M6 x 10 | 15596 | 1 |
| 4 | Oval head screw Torx V2A ISO14583 M6x25 | 70425 | 1 |
| 5 | Fiberplate DIN 7603 6 x 12 x 1 mm | 20609 | 1 |
| 6 | Strap grip PA black | 35676 | 1 |
| 7 | Spare set ASM gland seal | 43867 | 1 |
| 8 | Cover cap nut M6 | 49847 | 1 |
| 10 | Cap nut V2A DIN 1587 M6 | 6117 | 1 |
| 11 | Lock nut V2A DIN 985 M6 | 6128 | 1 |
| 12 | Spare controller drum filter XL | 77508 | 1 |
| 13 | Fuse T16A 250 V | 72543 | 1 |
| 14 | Gasket waste channel DF XL gutter | 73654 | 1 |
| 15 | Oval head screw Torx V2A ISO14583 M6x12 | 70426 | 1 |
| 16 | Waste channel DF XL gutter | 73652 | 1 |
| 17 | Cable protection Quintet / drum filter | 11979 | 1 |
| 18 | Foamed rubber band drum filter 2018 | 41300 | 1 |
| 19 | ASM Power supply 100 VA / 12 V DC | 76197 | 1 |
| 20 | Triangle bracket Bitron Premium | 76153 | 1 |
| 21 | Rubber connection DN110 to DN110 | 73751 | 1 |
| 22 | Adapter kit hose Bitron Premium | 77191 | 1 |
| 23 | Cover cleaning tube VA DF XL | 77514 | 1 |
| 24 | Spare cleaning tube bracket PCP 2017 | 49035 | 1 |
| 25 | Spare hose bracket ProfiClear Premium | 18790 | 1 |
| 26 | ASM cleaning tube DF XL | 72610 | 1 |
| 27 | Spare nozzle ProfiClear Premium | 18797 | 1 |
| 28 | Spare drum bearing drum filter | 18791 | 1 |
| 29 | Spare drum bearing truss XL | 77511 | 1 |
| 30 | Oval head screw Torx V2A ISO14583 M6x16 | 70424 | 1 |
| 31 | Spare drum drum filter XL | 77512 | 1 |
| 32 | ASM sieve frame 150 µm | 19004 | 1 |
| 32 | ASM sieve frame 60 µm | 22005 | 1 |
| 33 | Drum shaft | 16288 | 1 |
| 34 | Locking pin V2A DIN 11023 – 6 mm | 19515 | 1 |
| 35 | Spare connector rinse pump DF XL | 77513 | 1 |
| 36 | Fastening kit rinse pump | 17043 | 1 |
| 37 | Washer VA DIN 9021 6.4 | 6143 | 1 |
| 38 | Pre-filter rinse pump | 18943 | 1 |
| 39 | Rinse pump drum filter XL | 73457 | 1 |
| 40 | Spare grommet drum filter pump-fed | 18798 | 1 |
| 41 | Check valve 2″ | 48183 | 1 |
| 42 | Retaining nut 2″ | 12097 | 1 |
| 43 | Container XL drum filter pump-fed | 72589 | 1 |
| 44 | Oval head screw Torx V2A ISO14585 6.3×32 | 70428 | 1 |
| 45 | Gasket mesh tube 2016 | 43756 | 1 |
| 46 | Outlet 150/2 ProfiClear M 2 – M 5 | 26987 | 2 |
| 47 | Spare drain DN75 XL | 70636 | 1 |
| 48 | Spare srews set drain DN75 Premium | 18448 | 1 |
| 49 | Screw cap 2″ | 25993 | 1 |
| 50 | Blanking cap DN 110 | 16387 | 1 |
| 51 | Spare connection set DN110 short | 77507 | 1 |
| 54 | Gasket waste channel DF XL connector | 73653 | 1 |
| 56 | Waste channel DF XL connector | 73651 | 1 |
| 57 | Safety nut V2A DIN 985 M4 | 11113 | 1 |
| 58 | Spare seperating wall DF XL pumped | 77509 | 1 |
| 59 | Spare plain roller drum filter | 18794 | 1 |
| 60 | Spare gasket set sep.wall drum filter XL | 77510 | 1 |
| 61 | Cable holder drum filter | 19402 | 1 |
| 62 | ASM signal box drum filter XL pump-fed | 73649 | 1 |
| 63 | Mounting plate float sw. DF XL pump fed | 73645 | 1 |
| 64 | Spare drum gasket | 23192 | 1 |
| 65 | Cylinder screw V2A DIN 912 M4 x 20 | 20320 | 1 |
| 66 | Turmsilon GTI 300 GK tube 10 ml | 27872 | 1 |
| 67 | Washer V2A DIN 125 4.3 | 6133 | 1 |
| 68 | Truss drum filter XL pump-fed | 77222 | 1 |
| 69 | Cable holder drum filter screwable 9 mm | 72598 | 1 |
| 70 | Hexagon nut V2A DIN 934 M6 | 6105 | 1 |
