£2,760.00
DimensionsLength: 1163mmWidth: 530mmHeight: 680mm Click Here for Manual/ Instruction Manual/ Installation Instructions Motor: 130Nm /60watt 220volt Inlet in (MM): 3 x 110mm Drum: Ø 400 x 400mm Air supply: 2x50x300mm...

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Availability: 5 In Stock
Categories: Filtreau

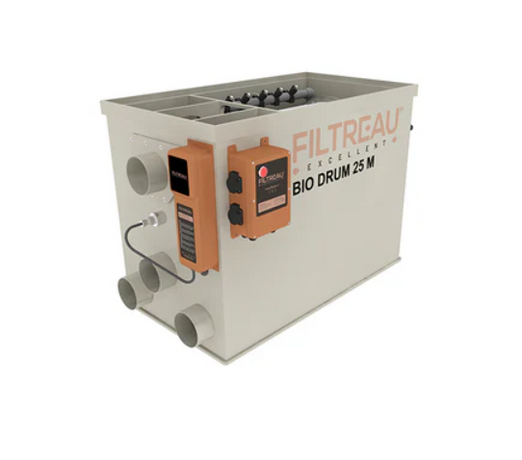

Dimensions
Length: 1163mm
Width: 530mm
Height: 680mm

Click Here for Manual/ Instruction Manual/ Installation Instructions

Motor: 130Nm /60watt 220volt

Inlet in (MM): 3 x 110mm

Drum: Ø 400 x 400mm

Air supply: 2x50x300mm

Type: Pump Fed

Outlet in (MM): 2 x 110mm

RVS 5 bar / 600watt 220 volt

Flushing pump (internal)

Control Box: included

Pond volume m3: 50 m3

Max. Flow: 25 m3

UV-C built-in unit: 80 watt H-O

SPG XL drive motor

Our industrial SPG drive motor delivers 130Nm. The unit for torque (force x arm) is Newton meters. It is used to denote, among other things, the tractive force of a motor. These drive motors are constructed exclusively for our drum filters! The motors are mounted on the filter with a double seal to prevent both leakage and deformation.

UV-C HO 80 watt

The new immersion Filtreau UV-C Module UNOX stainless steel contributes to pure pond water. Both the ingenious design and high-quality materials turn out high UV-C radiation with a wavelength of exactly 253.7 Nm. This high dose of irradiation destroys virtually all bacteria, viruses and also fungi. Added chemicals, such as Chlorine, can be reduced by up to 80 percent resulting in purer healthier water!

Stainless Steel Floater

Because of the dirt, the water in the drum cannot flow through the filter mesh as easily. This is signaled by the float switch, which triggers the flush function. This involves the drum spinning. The nozzles then spray water from the outside against the rotating drum.

Please Note: This option does not come with a rinse/ wash pump. If you require this please select the Option with rinse/ wash pump or purchase the TIP Pressure Cleaning pump.
